Tungsten Carbide Slitting Blade

Tungsten Carbide Razor Blade for Film, Foil, Paper and Converting industries

Material:
100% Virgin Tungsten Carbide
Place of Origin:
Hunan China
Size:
Customized, OEM Accepted,Customer Request
Usage:
Slitting of copper foil, aluminium foil, plastic film, co-extruded film, silk and chemical fibers, paper and cartons, etc.
Delivery Time:
in stock or 25-45 days
Payment Terms:
T/T, Western Union

Product description

Tungsten Carbide Slitting Blades are widely used in flexible materials like paper mills, foil & film, paper products, printing, adhesive tape, plastic & rubber, non-woven & textile, compounds etc.



We can produce several hundred customized slitting blades, including toothed, sawed, corrugated, dished, arrow, multi-grooved, compounded etc. We are highly specialized in manufacturing custom K10 K20 K30..... tungsten carbide circular slitter blades per sample and drawing.



Product Features

Tungsten Carbide Slitting Blade is made of high quality tungsten material and refined by high precision machining equipment, with sharp edges and excellent cutting performance, mainly used for cutting work in packaging, printing and finishing industries.

l  Blade material: K10,K20,K30 carbide slitter, superior material with uniform density, stable and wear-resistant knife body is not easy to chip, good surface finish.

l  Blade process, high blade precision, precision cutting edge, smoother slitting.

l  Using tungsten carbide raw material, uniform density, smooth tip without serrated notch.

l  Adopt processing function. Two specifications: Single-edged, double-edged.

l  To fully meet demand of different customer, some material and coating options are available for choice.

Product Parameters

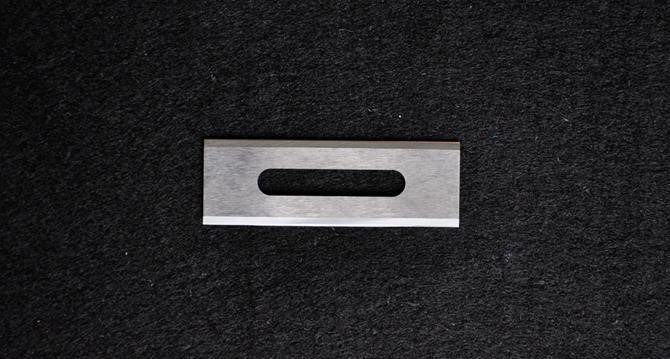

See below picture and details of Tungsten carbide oval hole slitting blade:


Material: Cemented Carbide (Tungsten)

Specifications: 57.*15*19.05*0.381mm/59.15*19.05*0.762 mm etc.

Can accept special specifications for custom production

Can be packed on request

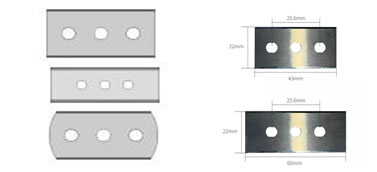

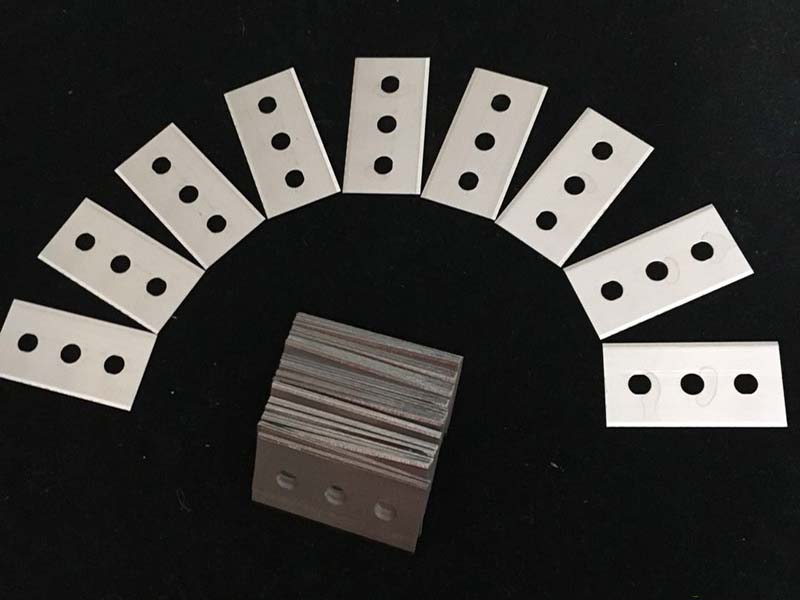

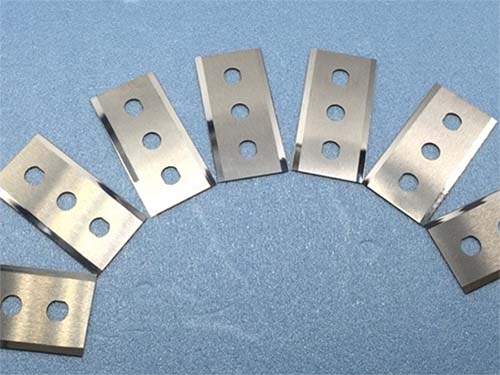

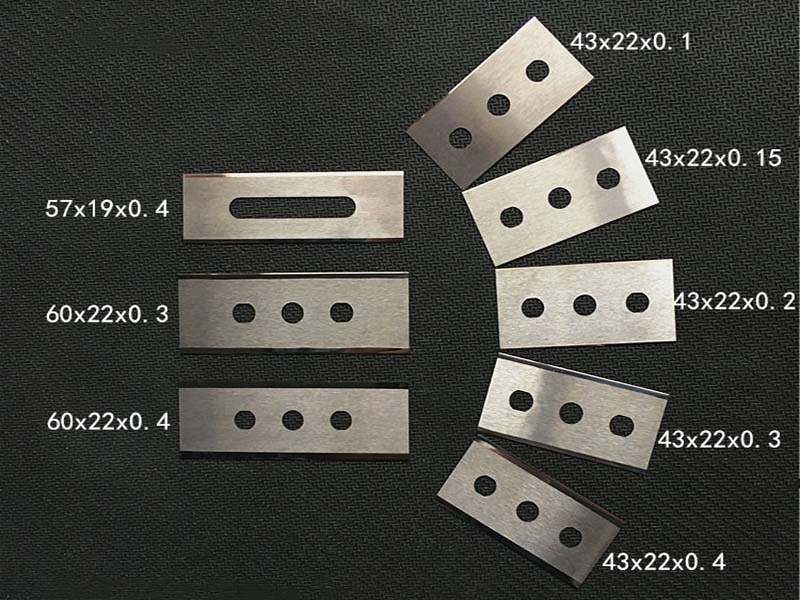

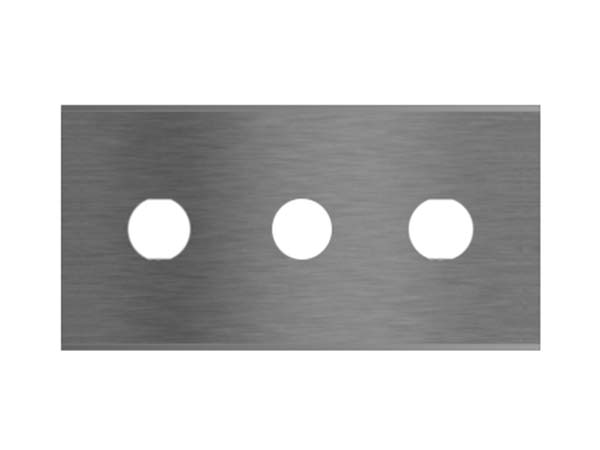

See below picture and details of different kinds of Tungsten carbide three hole razor slitters:

High quality tungsten carbide three-hole blade made from K10 tungsten carbide, and are adapted for use in plastic manufacturing. Optimized for cutting hard and laminated films. For a finer cut, We recommends 3-hole-blades with thickness of 0.10 mm/0.20 mm/0.30 mm/0.40 mm etc .


External Diameter

Internal Diameter

Thickness

    HRA

Material

43

22

0.1

90.5-91

Carbide Tungsten
  K20
carbide three   hole razor slitters

43

22

0.15

90.5-91

43

22

0.2

90.5-91

43

22

0.3

90.5-91

43

22

0.4

90.5-91

43

22

0.5

90.5-91

60

22

0.2

90.5-91

60

22

0.3

90.5-91

60

22

0.4

90.5-91

57

19

0.3

90.5-91

57

19

0.4

90.5-91

Accept customization

Applications

Slitting of copper foil, aluminium foil, plastic film, co-extruded film, silk and chemical fibers, paper and cartons, etc.

Industry: Packaging, textiles, shoe materials, paper making, printing, electronics, electrical, etc.



Grinding

Double edge

Two sided

Double bevel



Production Process

Blanking---choose materials according to customer requirements.

Finishing-mainly processing the material into shape.

Inspection---inspect whether the product is consistent with the drawing sample.

Coarse grinding-rough grinding of each surface of the product.

Precision grinding-super precision grinding, mirror grinding, improve the accuracy and parallelism of the product.

Inspection-Let unqualified products refuse to flow into the market.

Packing--different packing according to different products.

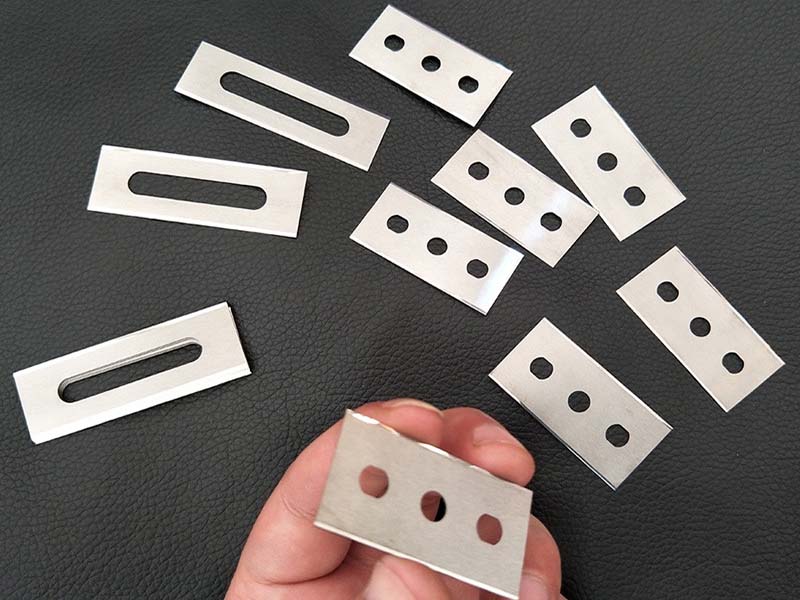

Product display
