Cemented carbide lithium battery separator slitting blade
Cemented carbide lithium battery separator slitting blade
- Material：
- 100％ Virgin Tungsten Carbide
- Place of Origin：
- Hunan China
- Size：
- Customized, OEM Accepted,Customer Request
- Usage：
- Slitting lithium battery separator
- Delivery Time：
- in stock or 25-45 days
- Payment Terms：
- T/T, Western Union
Product description
Copper foil, aluminum foil, lithium battery slitting blade for copper foil, aluminum foil, lithium batteries and other non-ferrous metal slitting industry research and development production, the choice of virgin materials made of good dense products, processing precision high, excellent selection of materials and edge grinding process, the achievement of the advantages of the product edge flat sharp, normal use without chipping phenomenon, under the microscope blade chipping less than 0.005, small slitting resistance, sharp blade, production High efficiency, with high cost performance.
The lithium battery diaphragm slitting blade is a high precision carbide blade with an edge that is required to be enlarged 150-200 times without any notch, which is a productivity requirement for the quality of lithium battery diaphragm slitting.

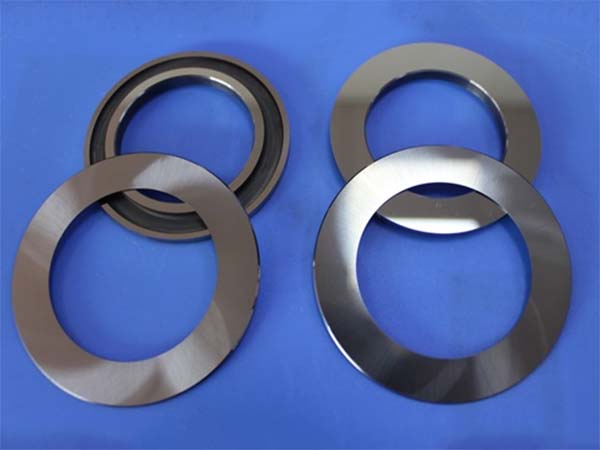

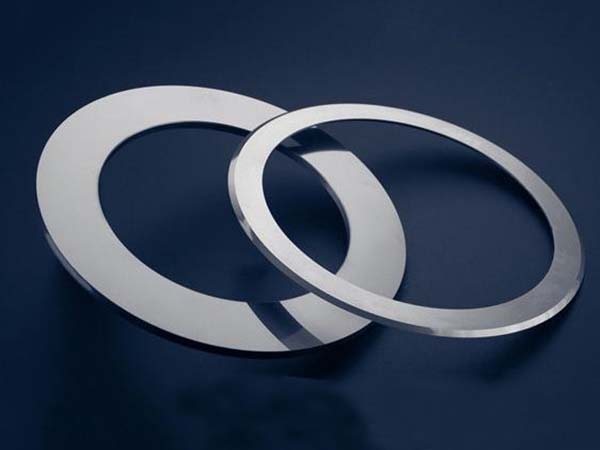

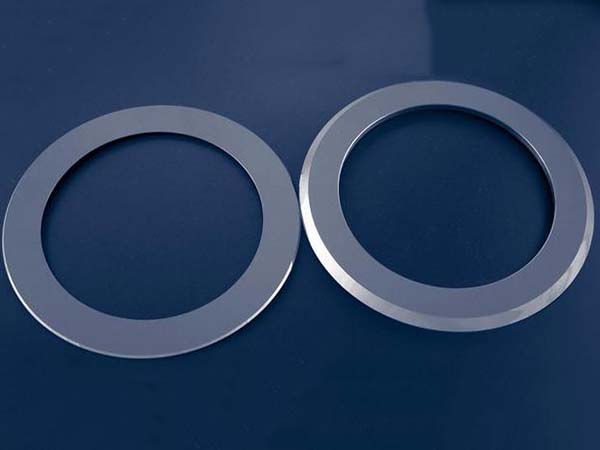

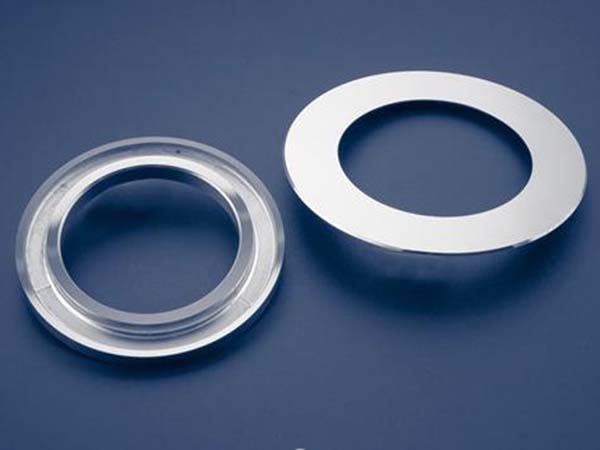

Tungsten Carbide lithium battery separator slitting blade are divided into upper and lower knives.

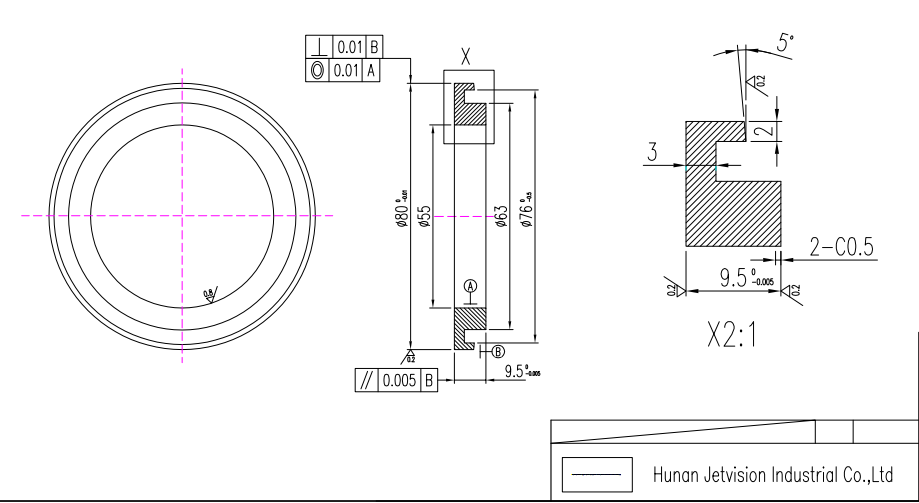

Common sizes:
Item | Common Sizes | Note |
Holes | ||
1 | φ68/75/76*φ46*0.56/1 | Upper blade |
φ60*φ40*5 | Down blade | |

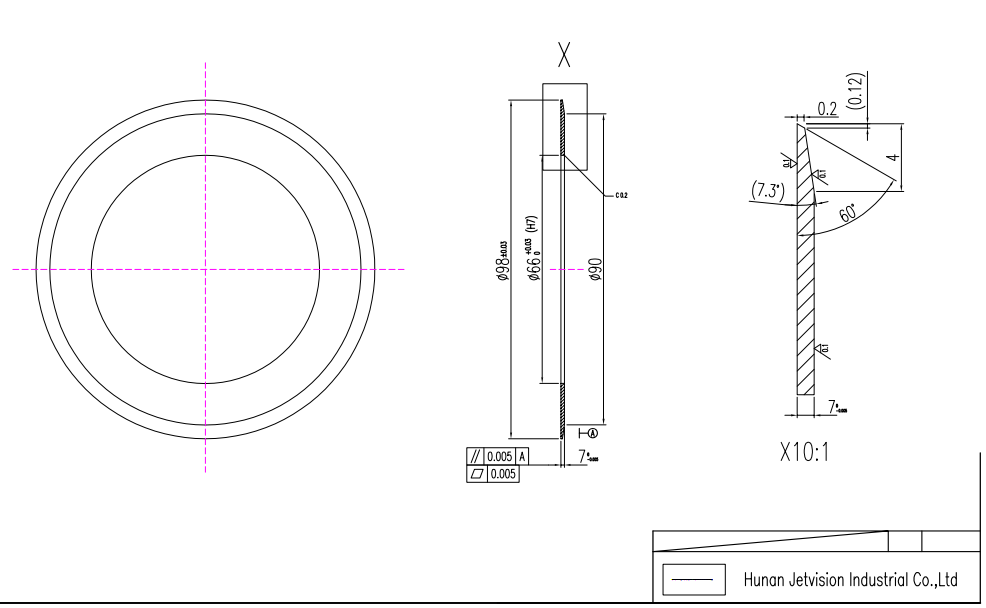

2 | φ98*φ66*0.7 | Dish upper blade |
φ80*φ55*5 | Down blade | |
3 | φ100*φ65*0.7 | φ100*φ65*1 |
φ100*φ65*2 | φ100*φ65*3 | |
4 | φ110*φ90*1 | |
φ110*φ75*3 | φ110*φ90*3 | |
5 | φ130*φ88*1 | φ130*φ97*0.8 |
φ130*φ70*3 | φ130*φ95*4 |
Depending on the actual use requirements of the slitting equipment, we can provide custom processing of lithium battery diaphragm carbide slitting blades.
