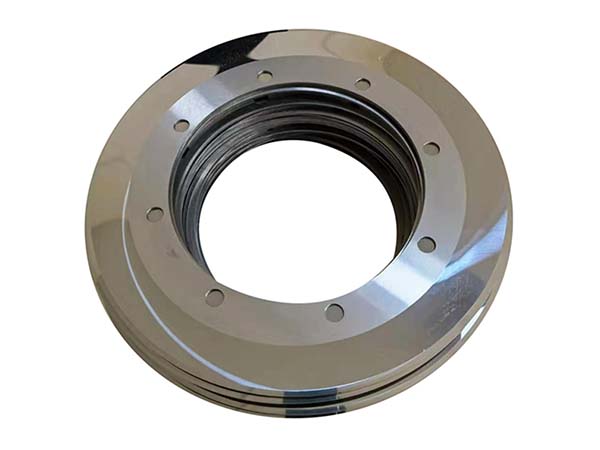

Tungsten Carbide Corrugated board Blades
Tungsten Carbide Corrugated paper round cutter
- Material：
- 100％ Virgin Tungsten Carbide
- Place of Origin：
- Hunan China
- Size：
- Customized, OEM Accepted,Customer Request
- Usage：
- Slitting tools for splitting and cutting corrugated paper, plastics, tapes, packaging cartons, films, gold, silver foil, copper foil, aluminium foil, magnetic tapes and other items.
- Delivery Time：
- in stock or 25-45 days
- Payment Terms：
- T/T, Western Union
Product description
Corrugated board is a board made of hanging paper and corrugated paper bonded to a waveform formed by corrugated stick processing. It is generally divided into two categories: single corrugated board and double corrugated board, which has good cushioning properties. It is light and strong. Small dimensions. Easy to automate production. Low cost of packaging operations. Can package a variety of items.
Product Features:
l High purity raw material is used for production and processing, stable performance.
l High hardness and high wear resistance, long service life.
l Sharp and smooth edge, using heat treatment technology and edge grinding technology, making the blade strong welding sharp.
l High precision, fast cutting and high slitting efficiency.
l Customized blades of various sizes and specifications are produced according to customer requirements.
Material recommend：YG6X/K20 Tungsten Carbide Corrugated paper round cutter
, YG8/K20-K30 Tungsten Carbide Corrugated board Blades、YG10/K40 Tungsten carbide corrugated board cutting blades、YG15/K30 Tungsten carbide Corrugated paper slitting knives
Special size can be customized.
Item No | Specification(mm) | Holes |
1 | Φ230*Φ110*1.1 | 6 Holes*Φ9 |

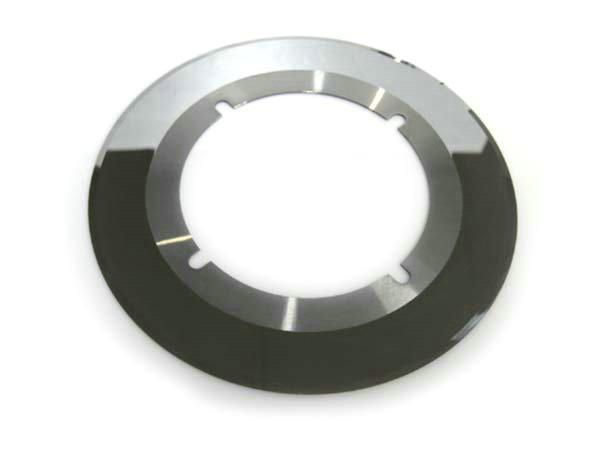

2 | Φ230*Φ135*1.1 | 4 Key slots |
3 | Φ220*Φ115*1 | 3 Holes*Φ9 |
4 | Φ240*Φ32*1.2 | 2 Hole*Φ8.5 |
5 | Φ240*Φ115*1 | 3 Hole*Φ9 |
6 | Φ250*Φ150*0.8 | |
7 | Φ257*Φ135*1.1 | |

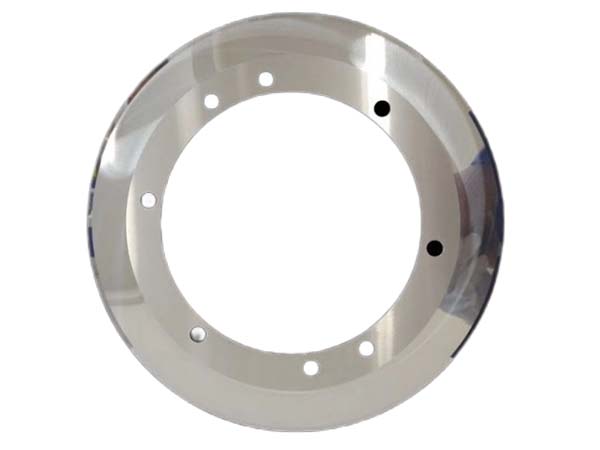

8 | Φ260*Φ112*1.5 | 6 Hole*Φ11 |
9 | Φ260*Φ140*1.5 | |

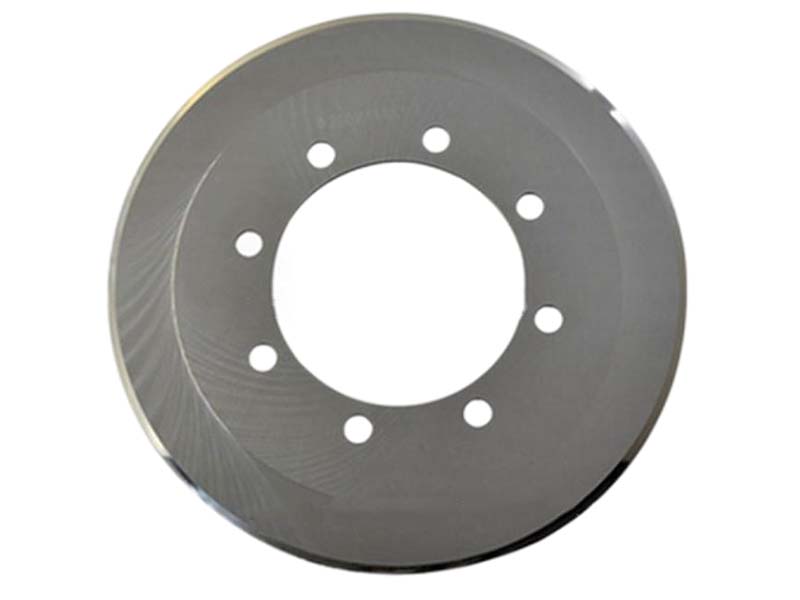

10 | Φ260*Φ168.3*1.2 | 8 Hole*Φ10.5 |
11 | Φ270*Φ168.3*1.5 | 8 Hole*Φ10.5 |
12 | Φ270*Φ140*1.3 | 6 Hole*Φ11 |
13 | Φ270*Φ170*1.3 | 8 Hole*Φ10.5 |
14 | Φ280*Φ160*1 | 6 Hole*Φ7.5 |
15 | Φ280*Φ202*1.4 | 6 Hole*Φ8 |
16 | Φ291*Φ203*1.1 | 6 Hole*Φ8.5 |
17 | Φ300*Φ112*1.2 | 6 Hole*Φ11 |
Customization is accepted | ||
Application:

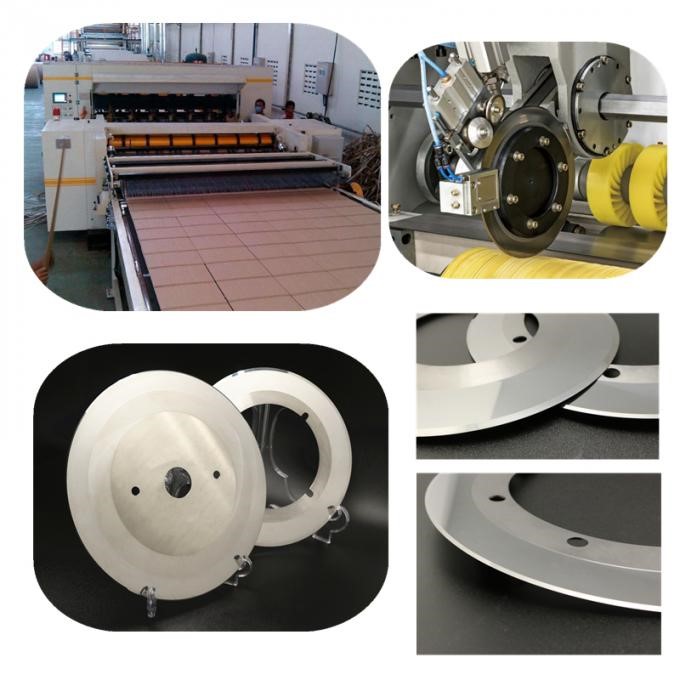

Corrugated paper slitting round blades, widely used as slitting tools for splitting and cutting corrugated paper, plastics, tapes, packaging cartons, films, gold, silver foil, copper foil, aluminium foil, magnetic tapes and other items.
Processing
Production process of carbide round blade blank material
Ø Select tungsten carbide powder + cobalt powder according to applicable requirements
Ø Mix thoroughly
Ø Crushing
Ø Drying
Ø Sieve and add molding agent
Ø Re-drying
Ø Sieved to make the mixture
Ø Granulating and pressing the mixture
Ø Forming
Ø Low pressure sintering
Ø Sintered blank
Ø Inspection
Ø Blank dimensional accuracy inspection.
Cemented carbide Circular Blade finishing and forming process
Ø Finishing grinding of blade surface
Ø Finishing grinding of inner circle and positioning groove
Ø Grind the outer circle of the blade and rough cutting edge
Ø Fine cutting edge
Ø Appearance and dimensional accuracy inspection
Ø Machine Test
Ø Marking
Ø 100% microscope inspection of the cutting edge
Ø Qualified product packaging
Packing
Rubber protector for cutting edges, blade in bubble pack, carton case.
Max 10 pcs blades in one carton case
Exterior packaging: carton or wooden case
Other packaging upon your request
