Polycrystalline Diamond Wire Drawing Dies
Polycrystalline diamond wire drawing dies
- Material：
- Polycrystalline diamond or Polycrystalline diamond to steel assemblies
- Place of Origin：
- Hunan China
- Size：
- Customized, OEM Accepted,Customer Request
- Usage：
- Soft wire and Hard wire
- Delivery Time：
- in stock or 25-45 days
- Payment Terms：
- T/T, Western Union
Product description

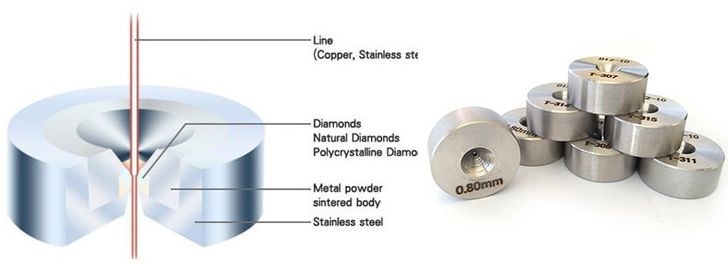

Polycrystalline diamond (PCD) is used under high-temperature pressing and sintering with alloy bonding agents.

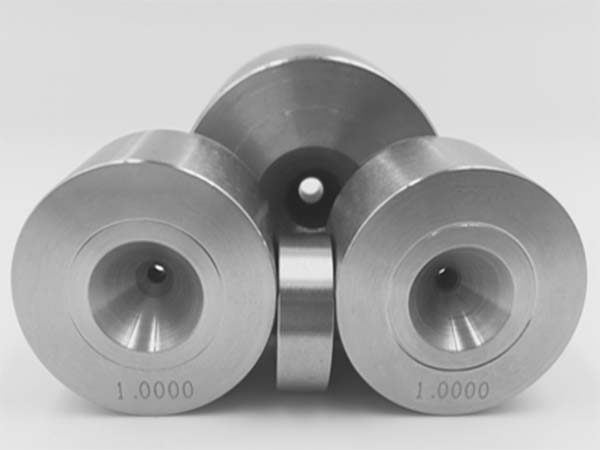

Polycrystalline diamond wire drawing dies have the longest die life of any material, providing the highest productivity and reduced downtime for the full range of applications from large to ultra-micro drawing, predictable wire surface quality, free arrangement of diamond crystals, allowing good roundness of the wire even when the die is heavily worn, and the size of the stock is guaranteed to obtain the maximum reaming size that can be expected.
Opening size: from 0.2500 mm to 14.0000 mm

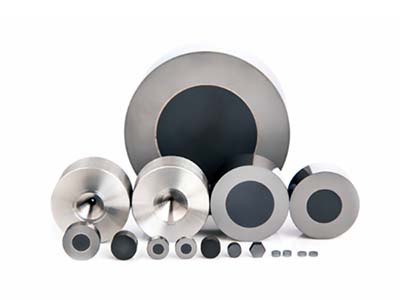

There are three main types of poly crystalline diamond blanks: non-reinforced ring type, with reinforced ring type and heat stabilized type.
Product Name | Polycrystalline Diamond Dies; PCD Wire Drawing Dies; PCD Drawing Dies; Diamond Drawing Dies |
Hole Sizes | 0.100-16.000(mm); 0.0039-0.6260(inch) |
PCD Diamond range:Compax,Sumidia,De Beers. | |
Applications | Flexible wire:copper wire,aluminum wire,brass wire,gold wire,aluminum magnesium alloy,copper clad steel wire,etc. |
Hard wire:stainless steel wire,copper plated wire,copper plated wire,tungsten wire,molybdenum wire,cutting wire,chromium wire,nickel wire,etc. | |
Advantages | Polycrystalline Diamond Wire Drawing Dies is the longest die life of all materials,which can provide the highest production efficiency and reduce downtime. |
Product range of PCD to steel assemblies拉丝模产品范围
Φmm | Φinches |
0.100-0.599 | 0.0039-0.0236 |
0.600-2.099 | 0.0236-0.0826 |
2.1-15.9 | 0.0827-0.6260 |
Tolerance模具公差
Hole Diameter孔径 | Hole Diameter孔径 | Tolerance公差 | Roundness圆度公差 |
≤0.00157 | ≤0.040 | 0.0003 | 0.0002 |
0.00158-0.00393 | 0.041-0.099 | 0.0005 | 0.0003 |
0.00394-0.01968 | 0.100-0.499 | 0.001 | 0.0005 |
0.01969-0.03936 | 0.500-0.999 | 0.0015 | 0.0008 |
0.03937-0.05905 | 1.000-1.499 | 0.002 | 0.001 |
0.05906-0.08661 | 1.500-2.199 | 0.003 | 0.0015 |
0.08662-0.12992 | 2.200-3.299 | 0.004 | 0.002 |
0.12993-0.18110 | 3.300-4.599 | 0.005 | 0.0025 |
0.18111-0.22834 | 4.600-5.799 | 0.006 | 0.003 |
0.22835-0.29921 | 5.800-7.599 | 0.007 | 0.0035 |
0.18111-0.41338 | 4.600-10.499 | 0.008 | 0.004 |
Applications
Soft wire: copper wire, aluminum wire, brass wire, gold wire, aluminum-magnesium alloy, copper-clad steel wire, etc.
Hard wire: stainless steel wire, copper plated wire, copper plated wire, tungsten wire, molybdenum wire, cutting wire, chrome wire, nickel wire, etc
