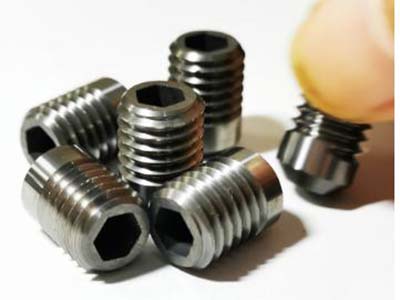

Threaded Tungsten Carbide nozzles

Tungsten Carbide threaded nozzles

Material：: 100％ Virgin Tungsten Carbide

Place of Origin：: Hunan China

Size：: Customized, OEM Accepted,Customer Request

Usage：: Chemical, food, machinery, metallurgy, construction and other industries

Delivery Time：: in stock or 25-45 days

Payment Terms：: T/T, Western Union

Product description

Threaded Tungsten Carbide nozzles are robust and have a relatively high cost performance, Cemented carbide threaded nozzle is easy for assembling and replacement. Threaded Cemented carbide nozzles are machined with precision machinery and cemented carbide material (super carbide). The bending resistance reaches 2300N/mm and the hardness reaches HRA90 degree. When machining carbide nozzles, we need to do precision grinding processing and surface treatment.

Carbide threaded nozzles are nozzles with threads, which have a series of excellent properties such as high hardness, wear resistance, better strength and toughness, heat resistance, corrosion resistance, etc. of carbide nozzles. The carbide threaded is convenient for replacing. Compared with conventional nozzles, carbide threaded nozzles increase their own locking ability and are easier and faster to replace. Under the pressure of liquid, the carbide threads move and compress, increasing the locking ability so that the nozzle itself will not come out. In addition, the nozzle is a consumable and wearable part. Although carbide has superior performance, it still needs to be replaced after normal wear and tear, and the threaded connection makes it easier and faster to replace. The shape and size of the carbide threaded nozzle can be processed according to the special requirements of customer drawings.

Material Grade:

K10 Carbide nozzles; K20 carbide threaded nozzle; K30 external thread nozzle; K40 solid carbide hex head threaded nozzles; P20 Tungsten carbide oil spray nozzle.

Chinese Grade	Equal to ISO Category Number	Chemical Composition		Physical Mechanical Properties
		WC	Co	Density	Bend Strength	Hardness
		%	%	G/Cm3	N/mm2	HRA
YG3	K01	96.5-97	3	14.9-15.3	≥1180	≥91.0
YG6X	K10	93.5	6	14.8-15.1	≥1420	≥92
YG6	K20	94	6	14.7-15.1	≥1600	≥91
YG8	K20-K30	92	8	14.5-14.9	≥1600	≥90
YG10	K40	90	10	14.3-14.7	≥1900	≥89
YG10X	K40	89	10	14.3-14.7	≥2200	≥89.5
YG15	K30	85	15	13.9-14.2	≥2100	≥87
YG20	K30	80	20	13.4-13.7	≥2500	≥85.5
YG20C	K40	80	20	13.4-13.7	≥2200	≥85.5
YG30	G60	70	30	12.8	≥2750	≥82

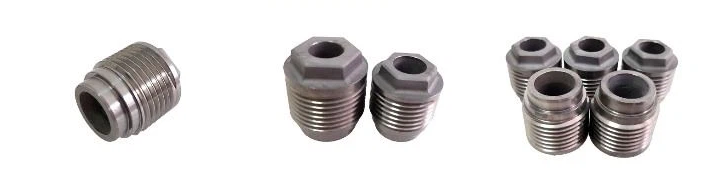

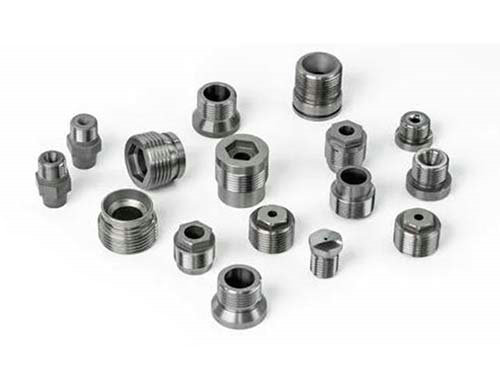

Carbide custom threaded nozzles types:

Wear-resistant threaded nozzles for the new energy industry

Customized carbide nozzle with screw thread Tungsten carbide nozzle with external thread

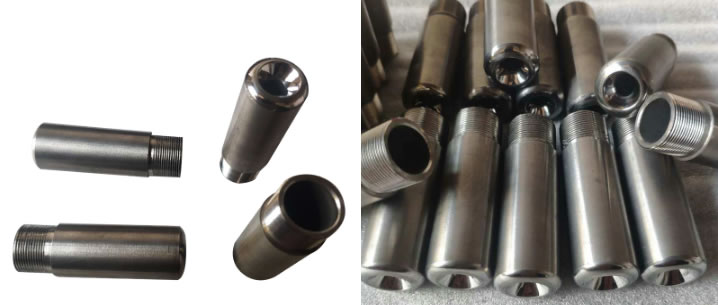

Customized Thread Tungsten Carbide Nozzle for Oil Industry

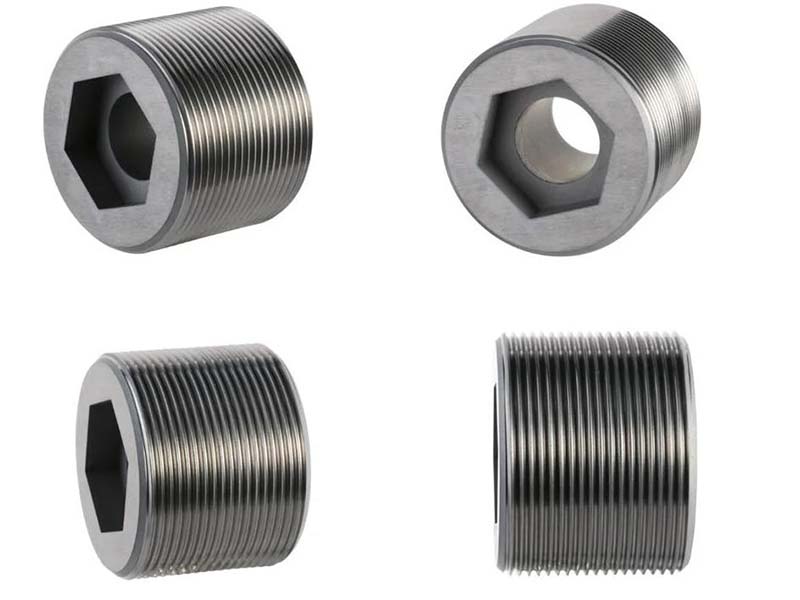

solid carbide hex head threaded nozzles

Application:

Tungsten carbide threaded nozzle is usually used on the drill bit to be able to clean the drill bit and the bottom of the well dug, firmly and wear-resistant, with long service life. It is mainly used in chemical, food, machinery, metallurgy, construction and other industries for making powder, removing rust, cleaning and atomization.
