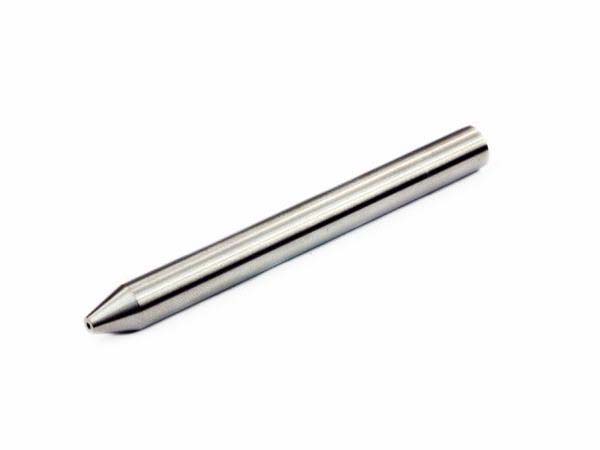

Tungsten Carbide Abrasive Waterjet nozzle
Tungsten Carbide Abrasive Waterjet nozzle
- Material：
- 100％ Virgin Tungsten Carbide
- Place of Origin：
- Hunan China
- Size：
- 6.0mm, 6.35mm, 7.14mm or as requested
- Usage：
- Waterjet machine
- Delivery Time：
- in stock or 25-45 days
- Payment Terms：
- T/T, Western Union
Product description
Tungsten Carbide cutting nozzle for high pressure water jet, also called tungsten carbide waterjet sand tube, carbide abrasive nozzle, tungsten carbide water nozzle, cemented carbide waterjet, tungsten carbide Mixing Tubes, carbide waterjet sand tube, carbide high pressure waterjet sand tube. We can customize various non-standard and shaped products according to customers' requirements!
Carbide Abrasive Waterjet nozzle:
l Original material, can provide tantalized titanium coating, increase wear resistance.
l Made of special material, long service life, high hardness and good wear resistance
l The size can be produced according to the requirement.
l The service life of the abrasive tube depends on the material of the product itself, and also has a close relationship with the pressure of the waterjet equipment, the use of abrasive or not, the material and hardness of the abrasive, etc. Generally, it is about 200 hours.

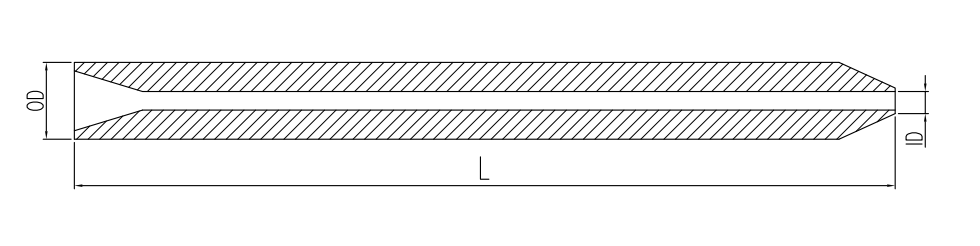

The structure of the carbide waterjet sand pipe is very simple, basically consisting of two sections, namely the conical population and the columnar outlet, whose dimensions vary slightly for different purposes, as shown in the figure.
Material grade:
K20 Carbide Abrasive Waterjet nozzle; K10 carbide waterjet sand tube; K40 carbide Mixing Tubes.
Chinese Grade | Equal to ISO Category Number | Chemical Composition | Physical Mechanical Properties | |||
WC | Co | Density | Bend Strength | Hardness | ||
% | % | G/Cm3 | N/mm2 | HRA | ||
YG3 | K01 | 96.5-97 | 3 | 14.9-15.3 | ≥1180 | ≥91.0 |
YG6X | K10 | 93.5 | 6 | 14.8-15.1 | ≥1420 | ≥92 |
YG6 | K20 | 94 | 6 | 14.7-15.1 | ≥1600 | ≥91 |
YG8 | K20-K30 | 92 | 8 | 14.5-14.9 | ≥1600 | ≥90 |
YG10 | K40 | 90 | 10 | 14.3-14.7 | ≥1900 | ≥89 |
YG10X | K40 | 89 | 10 | 14.3-14.7 | ≥2200 | ≥89.5 |
YG15 | K30 | 85 | 15 | 13.9-14.2 | ≥2100 | ≥87 |
YG20 | K30 | 80 | 20 | 13.4-13.7 | ≥2500 | ≥85.5 |
YG20C | K40 | 80 | 20 | 13.4-13.7 | ≥2200 | ≥85.5 |
YG30 | G60 | 70 | 30 | 12.8 | ≥2750 | ≥82 |
The inner diameter of Abrasive Waterjet nozzle is generally 0.76 and 1.02mm, the outer diameter is generally 6.0mm, 6.35mm, 7.14mm, 7.6mm and 9.45mm. can be customized according to the drawing.
OD | ID | L |
6 | 1.02 | 50/76.2/101.6 |
6 | 0.76 | |
6 | 0.5 | |
6.35 | 1.02 | |
6.35 | 0.76 | |
6.35 | 0.5 | |
7 | 1.02 | |
7 | 0.76 | |
7 | 0.5 | |
7.14 | 1.02 | |
7.14 | 0.76 | |
7.14 | 0.5 | |
8 | 1.02 | |
8 | 0.76 | |
8 | 0.5 | |
9.45 | 1.02 | |
9.45 | 0.76 | |
9.45 | 0.5 |
Application:
It used in waterjet machine for cutting all kind of material. Mainly used for metal cutting, ceramic cutting, stone cutting, glass cutting and other material cutting.
