Tungsten Carbide Ball
![](/img/video_play.png)
Tungsten Carbide ball supplier and manufacturer,carbide bearing ball
- Material:
- 100% raw carbide, YG6, YG6x, YG8, YG13,YG20,YN6, YN12, YT5,YT15
- Place of Origin:
- Hunan China
- Size:
- YG6/K20, YG8/K20-K30, or as requested.
- Usage:
- Hydrochloric acid laboratories, hardness measuring instruments
- Delivery Time:
- in stock or 25-45 days
- Payment Terms:
- T/T, Western Union
Product description

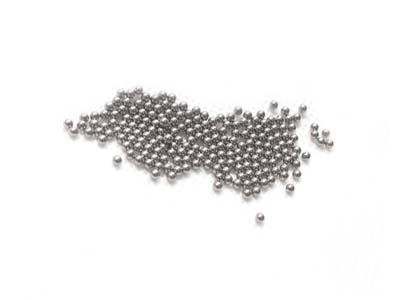

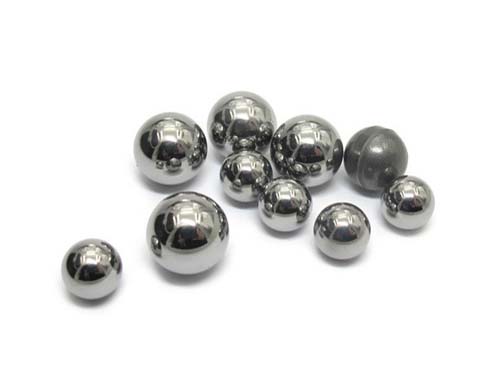

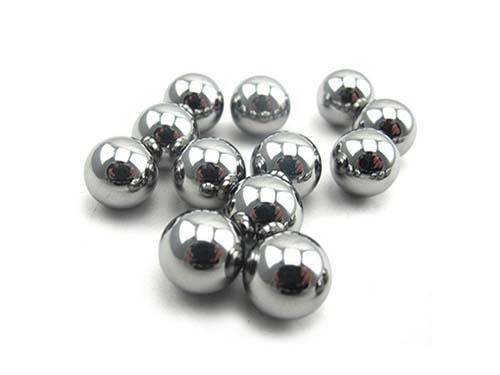

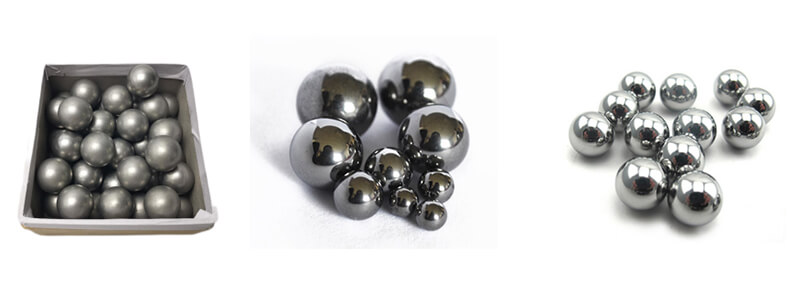

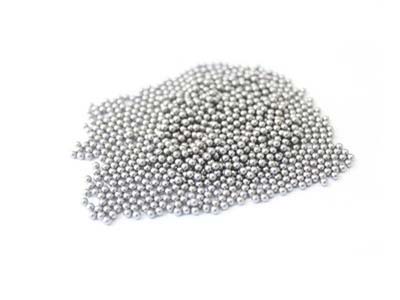

Tungsten Carbide ball, commonly known as tungsten carbide ball, is a ball and roll ball made of carbide as material, carbide ball can be ideally suitable for harsh environments, wear-resistant, impact-resistant, corrosion-resistant, and not easily deformed. It can be used in high temperature environment higher than 400℃, carbide ball hardness ≥90.5, density about 14.9g/cm3.
Cemented carbide balls mainly include carbide blank balls, carbide finely ground balls, punched balls, carbide bearing balls, carbide valve balls, carbide non-magnetic balls, Monel balls, through-hole balls, metering balls, color-scraping balls, and balls for pens.
Commonly used grades recommended:
YG6/K20 Tungsten carbide valve sealing balll; YG8/K20-K30 tungsten carbide rough polishing grinding ball; YN8 tungsten carbide pen core ball; YG6X/K20 Carbide ball.
Common specifications of K20 Tungsten Ball Unit Weight Reference Table:
Diameter (MM) | Density g/cm³ | Gram G |
2 | 18 | 0.075 |
2.5 | 18 | 0.147 |
3 | 18 | 0.254 |
3.5 | 18 | 0.404 |
4 | 18 | 0.603 |
4.5 | 18 | 0.859 |
5 | 18 | 1.178 |
5.5 | 18 | 1.567 |
6 | 18 | 2.035 |
6.5 | 18 | 2.587 |
7 | 18 | 3.231 |
7.5 | 18 | 3.975 |
8 | 18 | 4.824 |
8.5 | 18 | 5.786 |
9 | 18 | 6.868 |
9.5 | 18 | 8.078 |
10 | 18 | 9.421 |
12 | 18 | 16.280 |
Product Features:
High hardness-The production of raw materials, HIP sintering technology, hardness ≧ 89, tolerance up to 0.001, grinding accuracy between G10-G100, the surface has been finely ground and polished, low coefficient of friction.
Application:

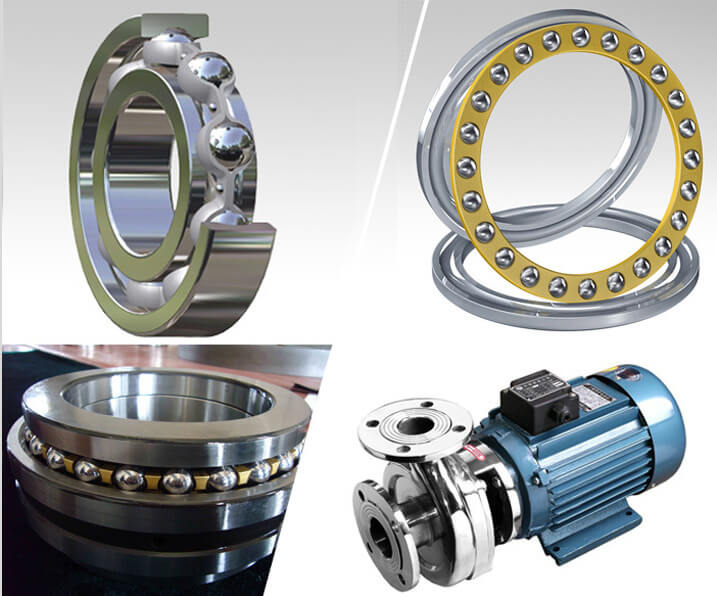

Carbide balls are widely used in a wide range of applications, such as: ball screws, inertial navigation systems, precision parts punching and stretching, precision bearings, instruments, meters, pen making, spraying machines, pumps, mechanical parts, sealing valves, brake pumps, punching and squeezing holes, oil fields, hydrochloric acid laboratories, hardness measuring instruments, high-quality fishing gear, counterweights, finishing and other high-end industries.
Production Process:
The production process of cemented carbide balls is similar to other cemented carbide products (cemented carbide rods, cemented carbide plates), mainly powder → formulation according to the requirements of the use → wet grinding → mixing → crushing → drying → sieving → after adding the forming agent → drying again → sieving to make the mixture → granulation → cold isostatic pressing → forming (rough) → sintering → forming (finished) → packaging → storage. According to the specific use requirements and related parameters, there are mainly carbide spherical products such as tungsten carbide balls, tungsten steel balls, tungsten balls and high specific gravity alloy balls. The smallest carbide balls can be made to about 0.3 in diameter.
