Tungsten Carbide Burrs Rotary Files
![](/img/video_play.png)
Tungsten Carbide Burrs Rotary Files/Tungsten Carbide Burrs
- Material:
- 100% raw tungsten carbide,YG6, YG8, YG10, YG15....
- Place of Origin:
- Hunan China
- Size:
- Customized, OEM Accepted,Customer Request
- Usage:
- CNC machining, dental drill and material DE-burring.
- Delivery Time:
- in stock or 25-45 days
- Payment Terms:
- T/T, Western Union
Product description
Tungsten carbide burs (carbide burrs) are small cutting tools used for cutting, drilling, grinding, and surface finishing. They are made of tungsten carbide, which is extremely hard and work in high speed to get the precise cutting edges. Often used in CNC machining, dental drill and material DE-burring.
Carbide Rotary Files/Tungsten Carbide Burrs is a new tape cutter with high efficiency, instead of grinding wheel bur with handle. It can cut and process various kinds of metal (including hardened steel) and nonmatal (such as marble)with hardness up to HRC less then 70.

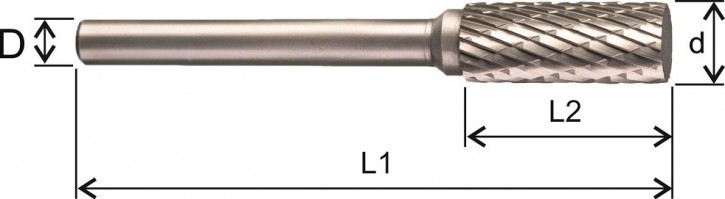

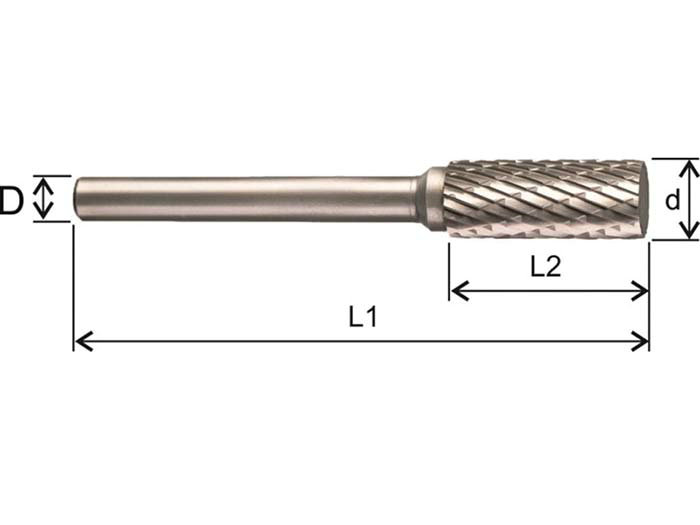

Size: Shape of Cutter, Shape, Edge, Total length, Shank diameter, Cutter diameter, Length of cut, Shank diameter
Similar to double cut are Diamond Cut carbide burrs which have multiple cutting faces, often found on router end mills.
Medium- light removal of material
Deburring
Fine finishing
Cleaning
Smooth finish
Creates small chips

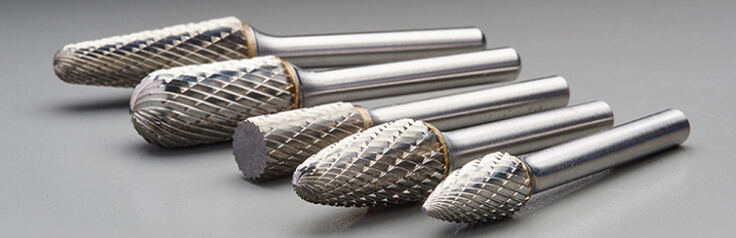

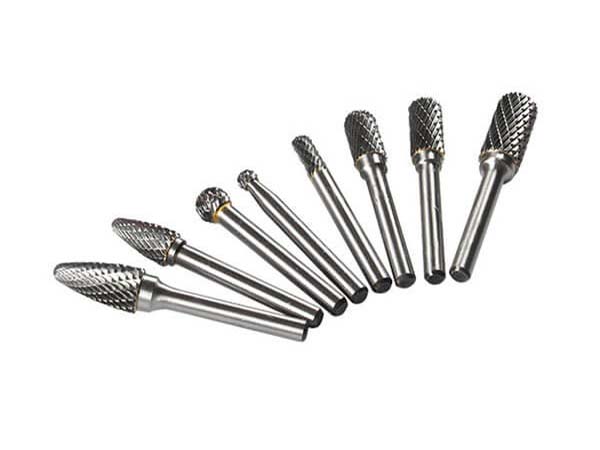

Different Shape to Choose:
Carbide Ball Burrs
Use a ball or spherical shaped carbide burr to create concave cuts in your material or to shape and hollow out an area. Small carbide ball burrs from as tiny as 0.5mm in diameter are ideal for intricate carving projects
Carbide Tree Burrs
Use for rounding off edges and making concave cuts. Use the pointed end for cutting in hard to reach areas and acute angled contours.

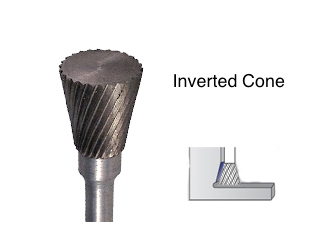

Carbide Inverted Cone Burrs
Use inverted cone shaped tungsten carbide burrs for making v-cuts and rear side chamfering.

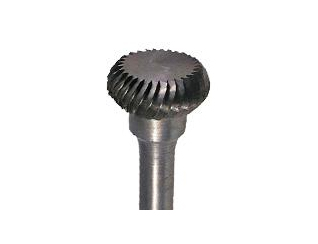

Tungsten Carbide Oblate Spheroid
A wheel shaped burr with a smooth top, round edges and fluted sides. Great for channel work and shaping.

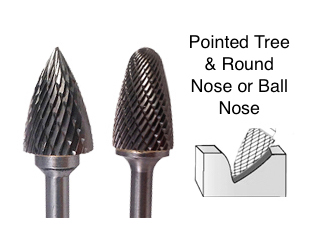

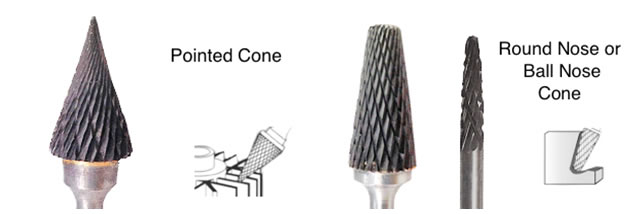

Carbide Pointed Cone & Carbide Round Nose or Ball Nose Burrs
Good for rounded edges and surface finishing in difficult to reach areas or tight and narrow angles and contours. The round nose or ball nose cone are often referred to as a taper shape.

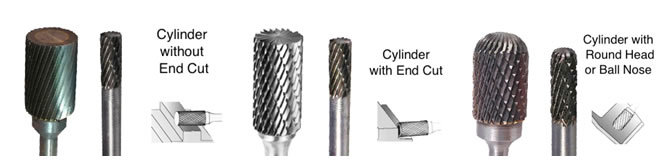

Cylinder Burrs. Round Nose/Ball nose/End Cut
Choose from an end cut cylinder (with a cutting edge on the end) for contour finishing. Cylinder without end cut (flat on the end and no cutting edge) for contour finishing and right angled corners or a round nose or ball nose shape which is a cylinder shaped carbide burr but with a rounded head.

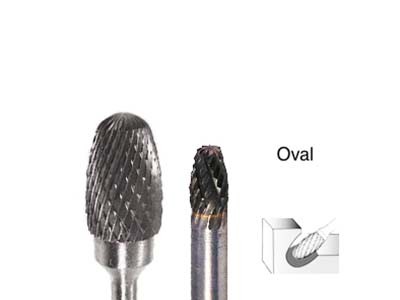

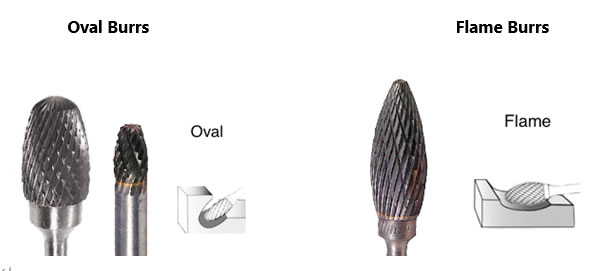

Tungsten Carbide Oval Burs/Flame Burs

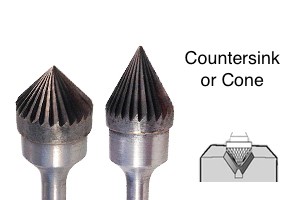

Countersink Burrs
Choose from 60 degree or 90 degree angle countersink burs, sometimes referred to carbide cone burrs. These are ideal for beveling, counter-boring, chamfering and for getting into acute angled areas of your work.
Application:
Tungsten Carbide Burrs Can be Used on Many Materials

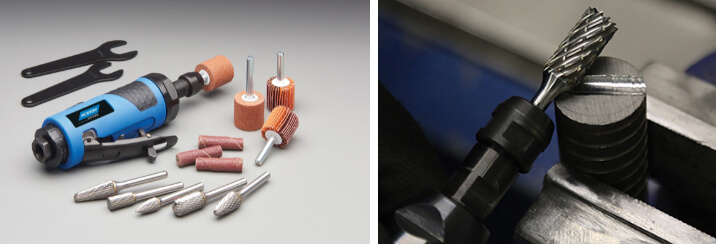

Die grinder bits can be used on a multitude of materials: metals including steel, aluminum and cast iron, all types of wood, acrylics, fibreglass and plastics. Carbide burrs are also perfect for working on softer metals such as gold, platinum and silver as they last a long time with no chipping or breaking.
Steel, Carbon Steel & Stainless Steel, Cast Iron, Aluminium, Titanium, Cobalt, Nickel, Gold, Platinum & Silver, Ceramics, Fibreglass, Plastic, Carbon Fiber Reinforced Plastic (CRP), Glass Fibre Reinforced Plastic (GRP), Brass, Copper & Bronze, Zinc, Wood....
It can be used in a wide variety of fields, such as dentistry, diamond cutting, jewelry making, and auto head porting, sculpting, welding, and windshield repairing.
Carbide rotary files, widely used in machinery, automotive, marine, chemical, engraving and other industrial sectors. The impact caused by carbide rotary files is great. Its main applications are.
Metal mold cavity finishing, such as shoe mold, etc.
Various metal and non-metal engraving, craft sculpture gifts.
Clear casting, forging, flash welding parts, burrs, welding and other mechanical foundry, shipyard, automotive plant.
A variety of round chamfer and groove processing, cleaning pipes, finished holes mechanical parts, such as machine shops, repair stores, etc., surface mechanical parts
Impeller, such as automobile engine factory light repair parts.
