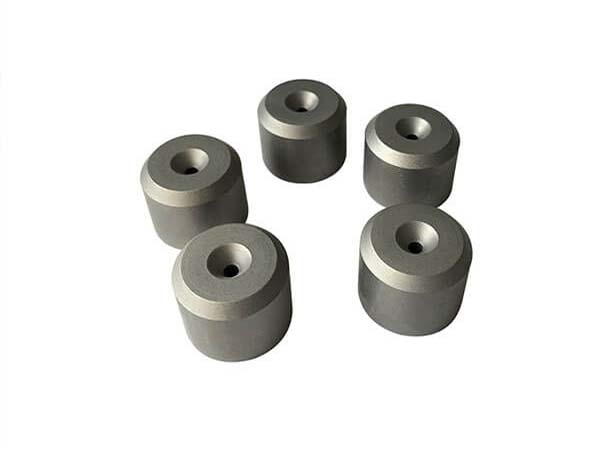

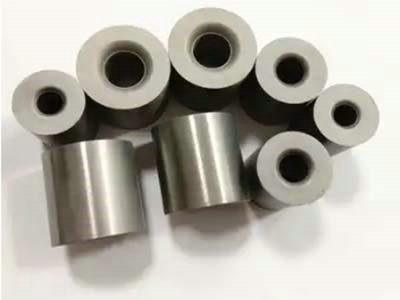

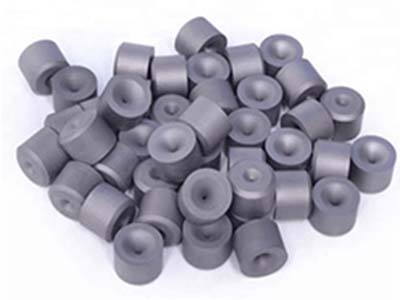

Tungsten Carbide Wire Drawing Die
Tungsten Carbide Drawing Die
- Material：
- 100％ Virgin Tungsten Carbide or carbide to steel assemblies
- Place of Origin：
- Hunan China
- Size：
- Customized, OEM Accepted,Customer Request
- Usage：
- Drawing rods,wire,silk, pipe material and so on
- Delivery Time：
- in stock or 25-45 days
- Payment Terms：
- T/T, Western Union
Product description
Tungsten carbide wire drawing dies are typically made of tool steel, tungsten carbide, carbide to steel assemblies, or diamond, with tungsten carbide and manufactured diamond being the most common. For drawing very fine wire a single crystal diamond die is used. For hot drawing, cast-steel dies are used. For steel wire drawing, a tungsten carbide die is used. The dies are placed in a steel casing, which backs the die and allows for easy die changes. Die angles usually range from 6–15°, and each die has at least 2 different angles: the entering angle and the approach angle.
Allowable deviation of inner diameter size (Unit: mm)
Size | Allowable Deviation | Size | Allowable Deviation |
0.1-0.3 | 0 | >9.0-24.0 | 0 |
-0.05 | -0.3 | ||
>0.30-0.40 | 0 | >24.0-32.0 | 0 |
-0.06 | -0.5 | ||
>0.40-0.60 | 0 | >32.0-40.0 | 0 |
-0.08 | -0.6 | ||
>0.60-3.0 | 0 | >40.0-55.0 | 0 |
-0.1 | -0.8 | ||
>3.0-6.0 | 0 | >55.0-90.0 | 0 |
-0.15 | -1 | ||
>6.0-9.0 | 0 | ||
-0.2 |
Allowable deviation of outer diameter size (Unit: mm)
Size | Allowable Deviation | Size | Allowable Deviation |
≤10 | 0.2 | >35-40 | ±0.30 |
0 | |||
>10-16 | 0.3 | >40-45 | ±0.35 |
0 | |||
>16-30 | 0.4 | >45-50 | ±0.40 |
0 | |||
>30-35 | ±0.25 | >50 | ±1.30 |
Allowable deviation of outer diameter size (Unit: mm)
Size | Allowable Deviation | Size | Allowable Deviation |
≤10 | ±0.2 | >30-40 | ±0.5 |
>10-20 | ±0.3 | >40-50 | ±0.5 |
>20-30 | ±0.4 | >50-60 | ±0.8 |
Shaped carbide wire drawing dies
Whatever the shape, we can provide you with a tailor-made solution. The following are some typical carbide wire drawing dies.

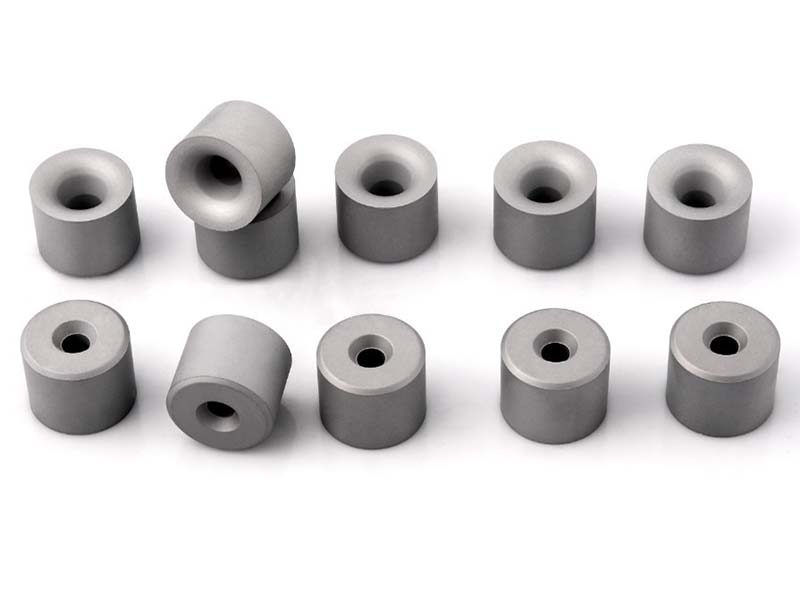

Round wire drawing dies
Hexagonal wire drawing dies
Square wire drawing dies
Rectangular wire drawing dies
Customized shapes
Application:
Carbide drawing dies application scope is very extensive, mainly used for drawing rods,wire,silk, pipe material and so on. It is suitable for drawing process steel,copper,tungsten ,molybdenum and alloy material.
Carbide grades for carbide to steel assemblies drawing dies:
YG6/K20 Tungsten Carbide Drawing Die; YG8/K30 CARBIDE Wire Drawing Die
We can make suggestions of suitable grades for customers’ usage.
Grade | Hardness (HRA) | TRS (N/mm²) | Density (g/cm³) | Grain size(μm) | Application |
YL10.2 K25-K35 | 92 | 4000 | 14.5 | 0.8 | Used for high-speed wire drawing and drawing of steel wire, tungsten wire, molybdenum wire, and other hard materials with 1.5mm-10mm walking the wire, and drawing of non-ferrous metal pipe (line) with high surface finish requirement. |
YG6 K20 | 89.5 | 1800 | 14.95 | 1.6 | Used for drawing steel, non-ferrous metal, and its alloy wire or bar with diameter below 20.0mm |
YG6X K20 | 91 | 1700 | 14.95 | 1 | Used for drawing steel wire, non-ferrous metal wire, and its alloy wire or bar under conditions requiring good wear resistance. |
YG8 K20-K30 | 89 | 2100 | 14.75 | 1.6 | Used for tensile steel with diameter below 50.0, non-ferrous metal and its alloy wire or bar, and pipe with diameter below 35mm under the condition of great stress. |
YG11 | 87 | 2300 | 14.4 | 1.6 | Used for drawing steel, non-ferrous metal and its alloy wire or bar with diameter below 60.0mm and pipe with diameter below 35mm under the condition of great stress. |
YG15 K30 | 86 | 2400 | 14.05 | 1.6 | For top forging of tensile steel bars and pipes, alloy steel bolts and rivets under high stress conditions. |
