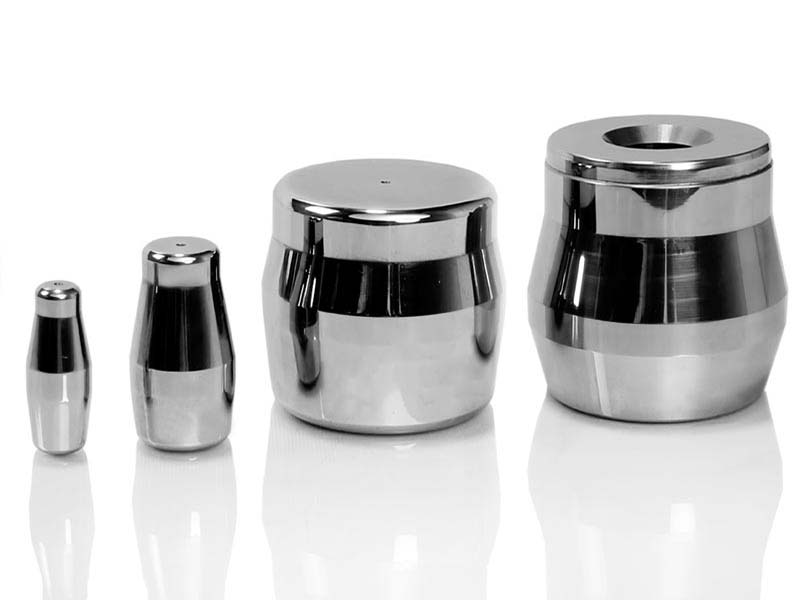

Tungsten Carbide Floating Plug
Tungsten Carbide Floating Die
- Material：
- 100％ Virgin Tungsten Carbide
- Place of Origin：
- Hunan China
- Size：
- Customized, OEM Accepted,Customer Request
- Usage：
- Drawing air conditioning, fridge and other condensation brass tubes
- Delivery Time：
- in stock or 25-45 days
- Payment Terms：
- T/T, Western Union
Product description

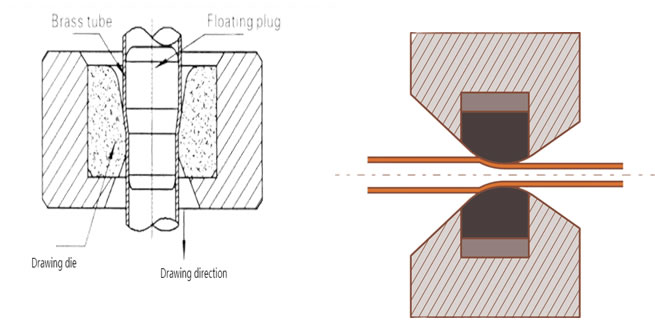

Tungsten carbide floating plug die, also known as inner plug, is mainly used for drawing copper tubes, and is used with tube drawing die (also known as drawing die), the floating plug is not fixed in the copper tube, through friction with the copper tube and the reaction force when the copper tube deformation to achieve a balanced state, so it is called floating plug, as opposed to the fixed plug. The length of copper tube drawn by the floating die can reach more than one thousand meters. The floating plug controls the inner diameter size of the copper tube, and the tube drawing die controls the outer diameter size of the copper tube.
Tungsten Carbide Floating Die is generally made of carbide, its grades are YG6, YG6X, YRL10, etc. Its surface roughness requirements are very high, generally polished to a mirror finish, no cracks and other defects.
Application
Tungsten carbide floating plugs used for drawing seamless tubes. Mainly for drawing air conditioning, fridge and other condensation brass tubes.
Material Grade
YG6/K20 Tungsten carbide floating plug die, YG6X/K10 cemented Floating Plug Dies used for drawing copper:
Chinese Grade | Equal to ISO Category Number | Chemical Composition | Physical Mechanical Properties | |||
WC | Co | Density | Bend Strength | Hardness | ||
% | % | G/Cm3 | N/mm2 | HRA | ||
YG3 | K01 | 96.5-97 | 3 | 14.9-15.3 | ≥1180 | ≥91.0 |
YG6X | K10 | 93.5 | 6 | 14.8-15.1 | ≥1420 | ≥92 |
YG6 | K20 | 94 | 6 | 14.7-15.1 | ≥1600 | ≥91 |
YG8 | K20-K30 | 92 | 8 | 14.5-14.9 | ≥1600 | ≥90 |
YG10 | K40 | 90 | 10 | 14.3-14.7 | ≥1900 | ≥89 |
YG10X | K40 | 89 | 10 | 14.3-14.7 | ≥2200 | ≥89.5 |
YG15 | K30 | 85 | 15 | 13.9-14.2 | ≥2100 | ≥87 |
YG20 | K30 | 80 | 20 | 13.4-13.7 | ≥2500 | ≥85.5 |
YG20C | K40 | 80 | 20 | 13.4-13.7 | ≥2200 | ≥85.5 |
YG30 | G60 | 70 | 30 | 12.8 | ≥2750 | ≥82 |
It can be manufactured based on customer specifications. Special shape plugs can also be fabricated according to the drawing.

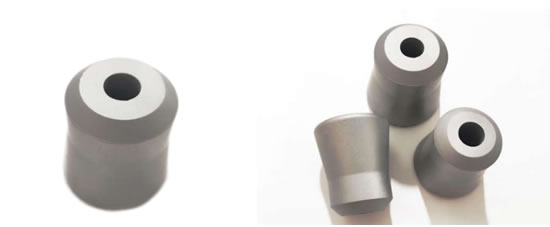

Blank Tungsten Carbide Floating Plugs:

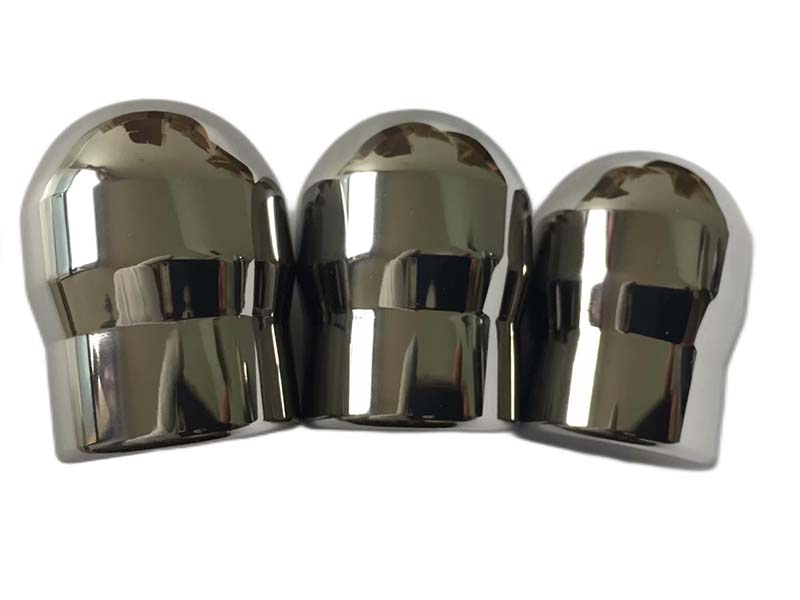

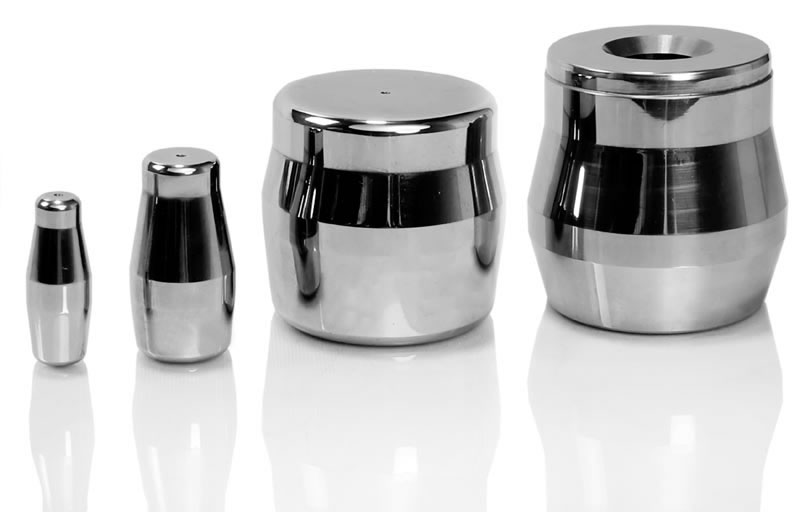

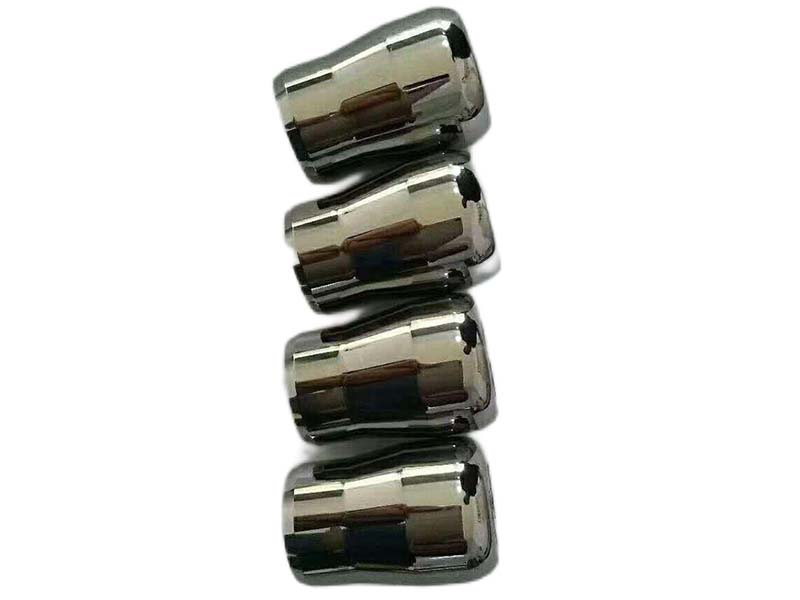

Finished Tungsten Carbide Floating Plugs:
Keywords:
Floating Tungsten Carbide Plug
Tungsten carbide floating die
Tungsten carbide floating plug for copper tube and aluminium tube
Tungsten Carbide Floating Plug Dies used for drawing copper
Tungsten carbide drawing die plugs
SOLID CARBIDE - STANDARD FLOATING PLUGS
Carbide SEMI FLOATING PLUGS
Carbide FLOATING PLUGS FOR SMALL TUBING
