Tungsten Carbide Nozzles

Tungsten Carbide nozzles Supplier and Manufacturer

Material：: 100％ Virgin Tungsten Carbide

Place of Origin：: Hunan China

Size：: Customized, OEM Accepted,Customer Request

Usage：: Surface treatment, sandblasting, painting, electronics, chemical processes

Delivery Time：: in stock or 25-45 days

Payment Terms：: T/T, Western Union

Product description

Cemented carbide nozzles are made of hot pressed sintered straight and mounded holes. Due to its hardness, low density and excellent resistance to wear and corrosion, carbide nozzles have been widely used in sandblasting and shot blasting equipment, ensuring the products are used for a long time in very good air and abrasive.

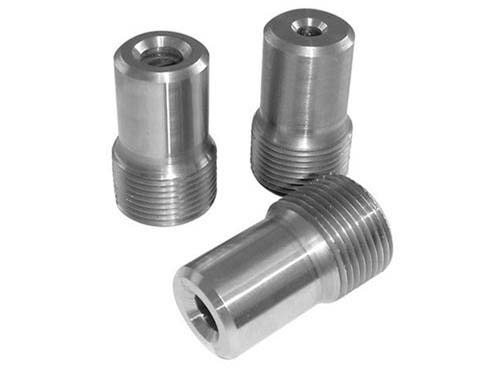

Main Product: carbide Cross-slotted threaded nozzles, Tungsten Carbide Spray Nozzles,

Carbide plum-shaped threaded nozzles, carbide Sandblasting nozzle, carbide external hexagonal threaded nozzles,carbide internal hexagonal threaded nozzles, carbide Y-shaped (three-slotted) threaded nozzles, carbide gear drill nozzles and fracturing nozzles are available in various sizes and types.

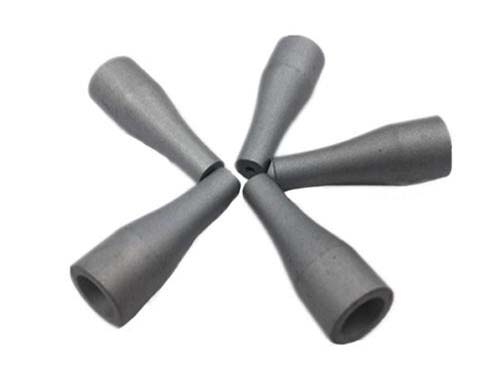

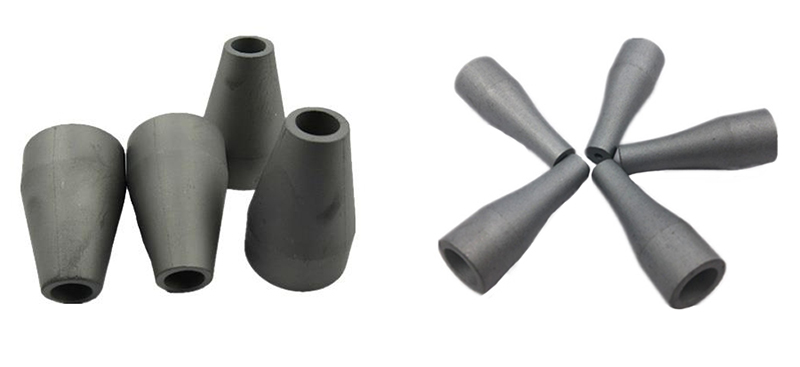

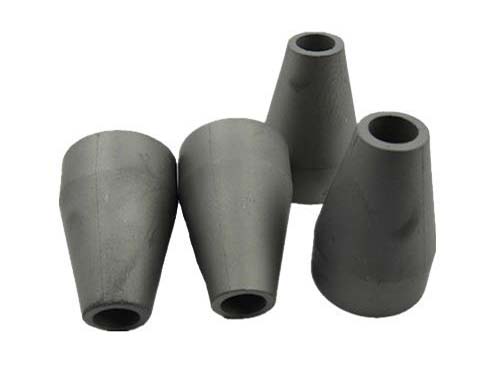

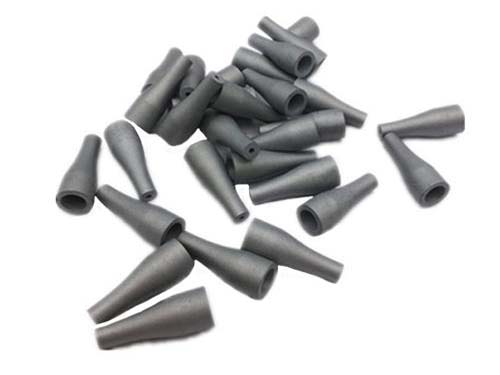

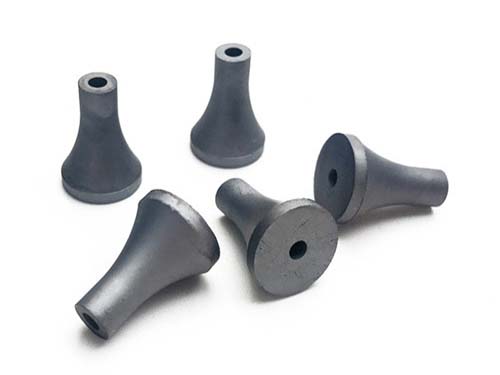

cemented carbide nozzle.jpg

Advantage:

Corrosion-resistant carbide nozzle, long service life, excellent performance, high cost performance, not easy to wear

The resistance to bending can reach 2300N/mm, and the hardness reaches HRA90 degrees.

Application:

The tungsten carbide nozzles are widely used in surface treatment, sandblasting, painting, electronics, chemical processes and other industries with different applications such as wire straightening, wire guides, and other aspects.

Material Grade:

K10 Carbide nozzles; K20 carbide threaded nozzle; K30 external thread nozzle; K40 solid carbide hex head threaded nozzles; P20 Tungsten carbide oil spray nozzle.

Grade	ISO Code	Chemical Composition(%)		Physical Mechanical Properties (≥)			Application
Grade	ISO Code	WC	Co	Density g/cm3	HRA	T.R.S N/mm2	Application
YG3	K01	97	3	14.9-15.3	≥91	≥1180	Suitable for finishing of cast iron,non-ferrous metals, alloys and non-metallic materials,and semi-finishing vehicles for intermittent cutting.
YG6	K10	93.5	6	14.8-15.1	≥92	≥1420	Finishing of chilled hard alloy cast iron and heat resistant alloy steel and ordinary cast iron.
YG6X	K20	94	6	14.7-15.1	≥91	≥1600	Cast iron, non-ferrous metals and alloys, non-metallic materials, medium to cutting, semi-finishing and finishing.
YG8	K20-K30	92	8	14.5-14.9	≥90	≥1600	Suitable for casting of cast iron, non-ferrous metals and their alloys and non-metallic materials, roughing of sections and rough cutting.
YG10	K40	90	10	14.3-14.7	≥89	≥1900	Suitable for the production of drawing dies, wear parts and stamping parts and cores for hard alloy automatic presses.
YG10X	K40	89	10	14.3-14.7	≥89.5	≥2200	Suitable for small diameter micro drills, end mills, rotary boring tools, etc.
YG15	K30	85	15	13.9-14.2	≥87	≥2100	Forging, perforating and stamping tools for steel bars and steel tubes with high compression ratios and working under large stresses.
YG20	K30	80	20	13.4-13.7	≥85.5	≥2500	Stamping die, stamping watch parts, musical instrument spring piece.
YG20C	K40	80	20	13.4-13.7	≥85.5	≥2200	punching battery case, toothpaste skin mold, small size steel ball, screw, nut stamping die, hot rolling twist drill bit plate.
YG30	G60	70	30	12.8	≥82	≥2750	Production of standard parts, bearings, tools and other industries for cold heading, cold punching, cold pressing die.
