Tungsten Carbide Ring Gauge
Tungsten Carbide Ring gauges
- Material：
- Gauge body in steel and measuring face insert in tungsten carbide
- Place of Origin：
- Hunan China
- Size：
- Customized, OEM Accepted,Customer Request
- Usage：
- Measuring shafts
- Delivery Time：
- in stock or 25-45 days
- Payment Terms：
- T/T, Western Union
Product description

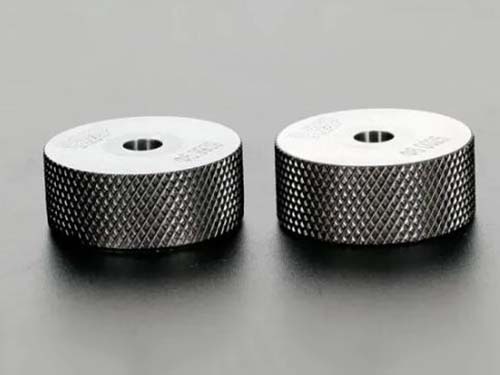

Tungsten Carbide Ring gauges, also called Tungsten Carbide calibration rings, are rings with specific dimensions and properties used to correct deficiencies in gauges. Tungsten Carbide Ring gauges are limit gauges for shafts and are mainly used for measuring shafts or other external dimensions with a tolerance class of 1T6 to 1T16.

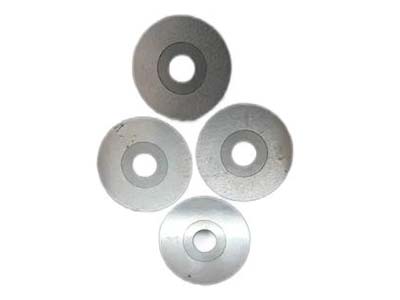

Gauge body in steel and measuring face insert in tungsten carbide
The carbide to steel assemblies Ring Gauge can be customized and produced according to your drawings or dimensions.

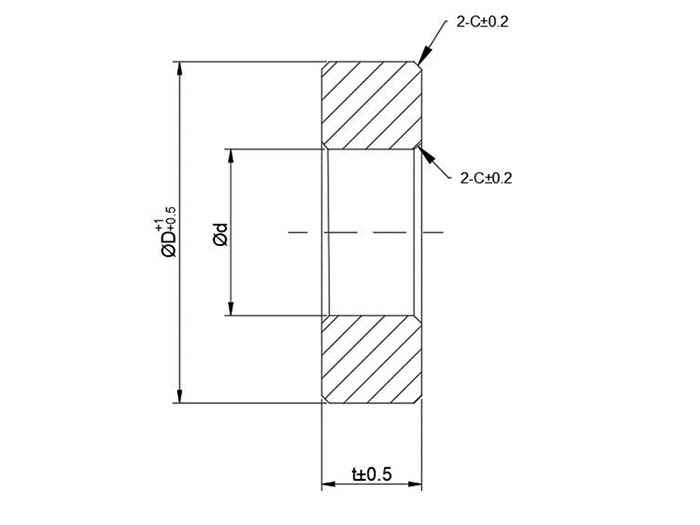

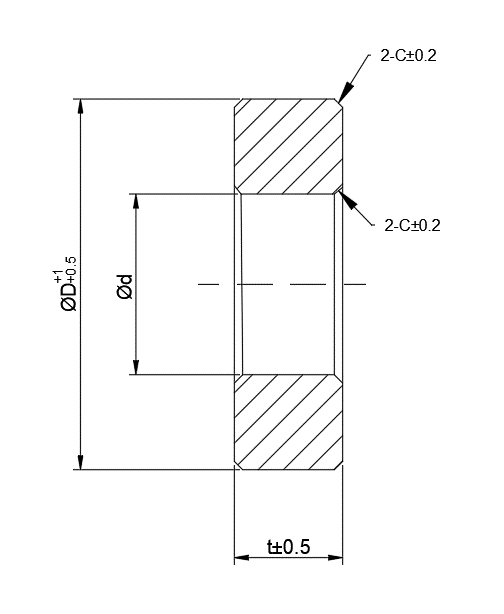

Φd(mm) | ΦD(mm) | t(mm) | 2-C |
Φ6.0 | Φ25 | 7 | 0.5 |
Φ8.0 | Φ25 | 10 | 0.5 |
Φ10.0 | Φ32 | 10 | 1 |
Φ12.0 | Φ32 | 10 | 1 |
Φ14.0 | Φ32 | 10 | 1 |
Φ16.0 | Φ35 | 10 | 1 |
Φ18.0 | Φ35 | 10 | 1.5 |
Φ20.0 | Φ45 | 10 | 1.5 |
Φ22.0 | Φ45 | 10 | 1.5 |
Φ24.0 | Φ45 | 10 | 1.5 |
Φ26.0 | Φ50 | 10 | 1.5 |
Φd(mm) | Tolerance(mm) | Roundness tolerance |
6~20 | ±0.001 | 0.001 |
20~45 | ±0.002 | 0.0015 |
Material Grade:
K20 Tungsten Carbide Ring Gauges/K30 Carbide Plain Ring Gauges/K10 Carbide Thread Ring Gauge.
Chinese Grade | Equal to ISO Category Number | Chemical Composition | Physical Mechanical Properties | |||
WC | Co | Density | Bend Strength | Hardness | ||
% | % | G/Cm3 | N/mm2 | HRA | ||
YG3 | K01 | 96.5-97 | 3 | 14.9-15.3 | ≥1180 | ≥91.0 |
YG6X | K10 | 93.5 | 6 | 14.8-15.1 | ≥1420 | ≥92 |
YG6 | K20 | 94 | 6 | 14.7-15.1 | ≥1600 | ≥91 |
YG8 | K20-K30 | 92 | 8 | 14.5-14.9 | ≥1600 | ≥90 |
YG10 | K40 | 90 | 10 | 14.3-14.7 | ≥1900 | ≥89 |
YG10X | K40 | 89 | 10 | 14.3-14.7 | ≥2200 | ≥89.5 |
YG15 | K30 | 85 | 15 | 13.9-14.2 | ≥2100 | ≥87 |
YG20 | K30 | 80 | 20 | 13.4-13.7 | ≥2500 | ≥85.5 |
YG20C | K40 | 80 | 20 | 13.4-13.7 | ≥2200 | ≥85.5 |
YG30 | G60 | 70 | 30 | 12.8 | ≥2750 | ≥82 |
