Tungsten Carbide valves seat
Tungsten Carbide valves seat
- Material：
- 100％ Virgin Tungsten Carbide
- Place of Origin：
- Hunan China
- Size：
- Customized, OEM Accepted,Customer Request
- Usage：
- Widely used in where extreme hardness and wear resistance is required
- Delivery Time：
- in stock or 25-45 days
- Payment Terms：
- T/T, Western Union
Product description

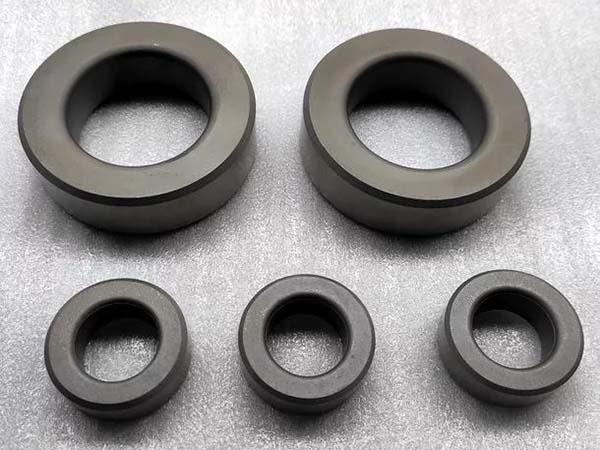

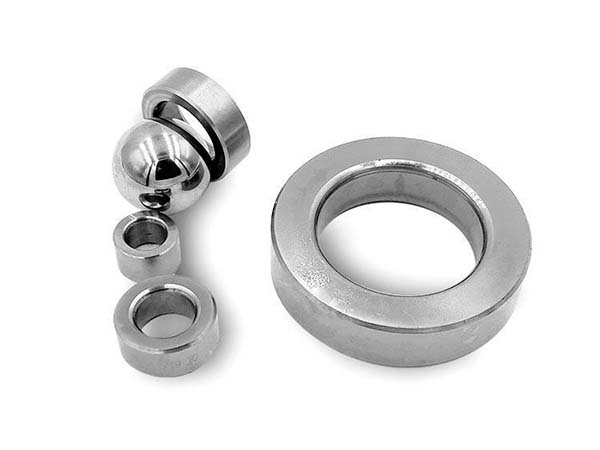

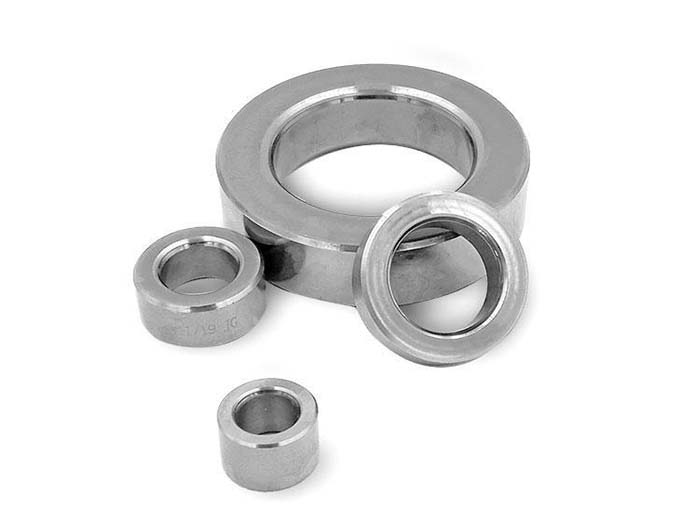

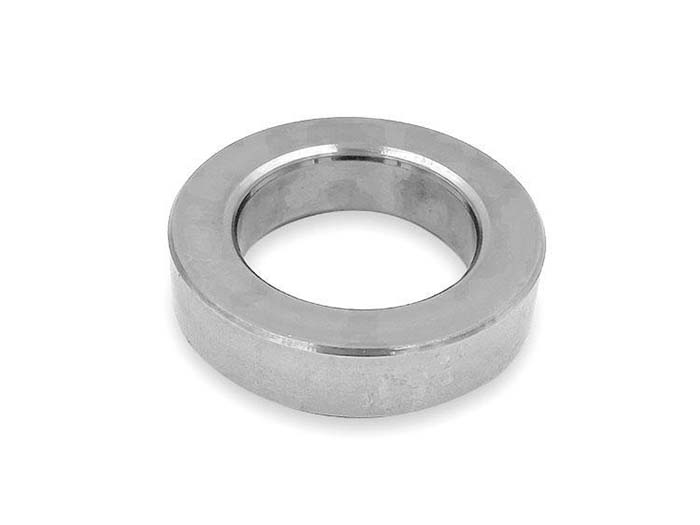

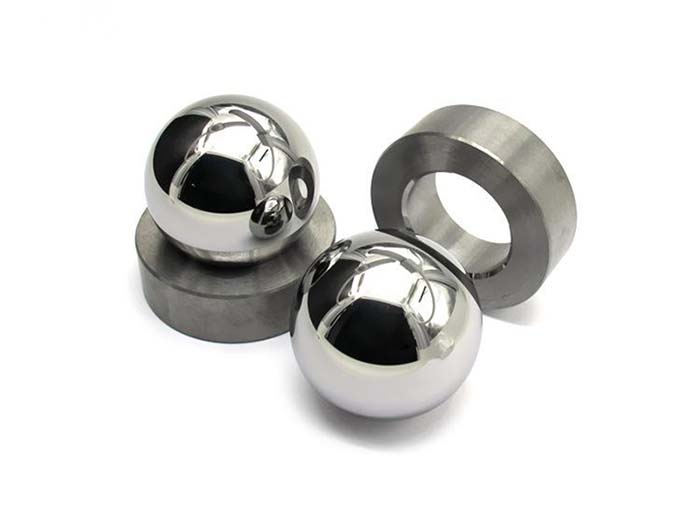

Cemented carbide valve seat are typically used in conjunction with carbide balls. Cemented carbide, the primary material used in cemented carbide seats, is corrosion and abrasion resistant and can withstand high pressures.Our precision polished tungsten carbide valve seats are made of 100% virgin raw materials, with high hardness carbide. Carbide valve seats are used in a variety of sizes and configurations and can be used under abrasive, corrosive and aggressive conditions and are used in many applications such as drilling for oil and gas, geotechnical mining and fluid control.
The following are the outstanding features of Tungsten carbide valve seats:
l Corrosion and wear resistance.
l Longer operating time.
l Resistance to high pressure.
l High accuracy of dimensions.
l Excellent tolerance to thrust loads and high temperatures.

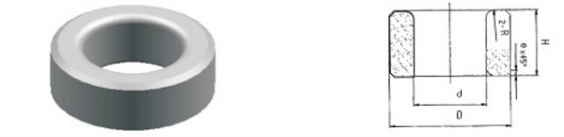

The size of K10/K20/K30 Cemented carbide seats&Carbide balls:
Seats Dimension (mm) | ||
D | d | H |
19.48 | 11.68 | 12.7 |
22.66 | 13.97 | 12.7 |
28.22 | 17.02 | 12.7 |
33.81 | 20.96 | 12.7 |
36.09 | 24.38 | 12.7 |
41.43 | 26.92 | 12.7 |
48.79 | 33.27 | 12.7 |
74.93 | 43.18 | 19.05 |
Ball dimension (mm) |
D±1.27(mm) |
15.88 |
19.05 |
23.83 |
28.58 |
31.75 |
34.93 |
42.88 |
57.15 |
Materials Grade:
K10 Cemented carbide valve seat; K20 cemented carbide seats;K12 carbide valve ball.
Chinese Grade | Equal to ISO Category Number | Chemical Composition | Physical Mechanical Properties | |||
WC | Co | Density | Bend Strength | Hardness | ||
% | % | G/Cm3 | N/mm2 | HRA | ||
YG3 | K01 | 96.5-97 | 3 | 14.9-15.3 | ≥1180 | ≥91.0 |
YG6X | K10 | 93.5 | 6 | 14.8-15.1 | ≥1420 | ≥92 |
YG6 | K20 | 94 | 6 | 14.7-15.1 | ≥1600 | ≥91 |
YG8 | K20-K30 | 92 | 8 | 14.5-14.9 | ≥1600 | ≥90 |
YG10 | K40 | 90 | 10 | 14.3-14.7 | ≥1900 | ≥89 |
YG10X | K40 | 89 | 10 | 14.3-14.7 | ≥2200 | ≥89.5 |
YG15 | K30 | 85 | 15 | 13.9-14.2 | ≥2100 | ≥87 |
YG20 | K30 | 80 | 20 | 13.4-13.7 | ≥2500 | ≥85.5 |
YG20C | K40 | 80 | 20 | 13.4-13.7 | ≥2200 | ≥85.5 |
YG30 | G60 | 70 | 30 | 12.8 | ≥2750 | ≥82 |
Application:
Widely used in where extreme hardness and wear resistance is required, such as: carbide bearings,tungsten carbide ball screws,cemented carbide valves and flow meters pen,carbide spraying machines, pump, tungsten steel machinery parts, oil, hydrochloric zcid lab,carbide hardness measuring instrument,and so high-end industry.
